FurnXpert Meting Furnace software offers the ability to determine: Heating Time, Melting Time Heating rates during Heating, Melting and Holding Heat Loss through refractory walls, gaps and openings, Heat to raise scrap temp from ambient to melting point Heat to melt at melting point Fuel rate, Air rate at each process stages Flue Loss, Total Heat Input & Furnace Efficiency.

M O D U L E S   A N D   F E A T U R E S

Unit System

The software is designed for both English and Metric units. For Metric the user can select either Watt or kCal/hr as heat rate unit.

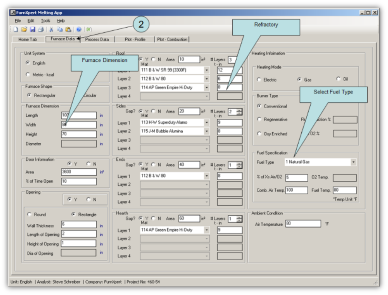

Furnace Configurator

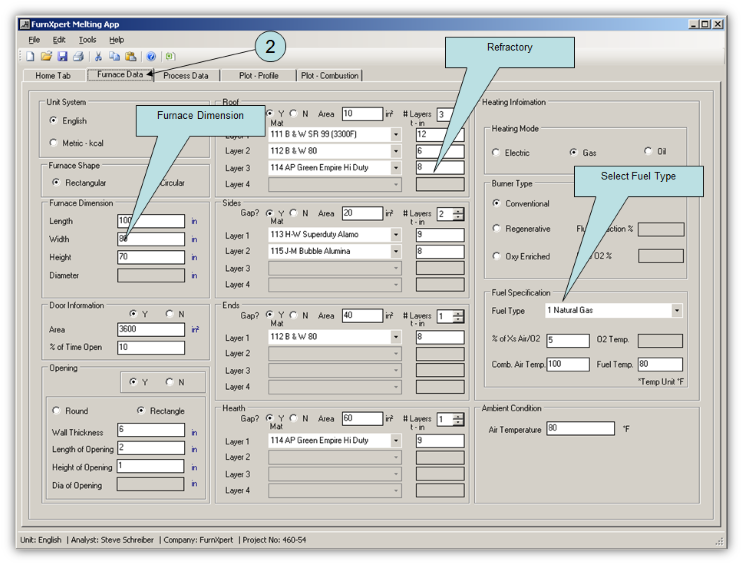

Furnaces in the shape of either box or cylinder can be analyzed. The inputs are length, width, and height in the case of box type furnace and height and diameter for cylindrical furnace.

Refractory Selection

User can create their own insulation layers from a list of refractories for each furnace wall.

Door, Gaps & Opening

Door dimensions, Gap area, and opening information are used to calculate Heat loss through doors, gaps and openings.

Heating Type

Type of heating can be either Electric. Gas or Oil fired.

Burner Type

Burners can be selected from conventional, regenerative or oxy fired.

Fuel Type

List of gaseous and liquid fuels are available for selection.

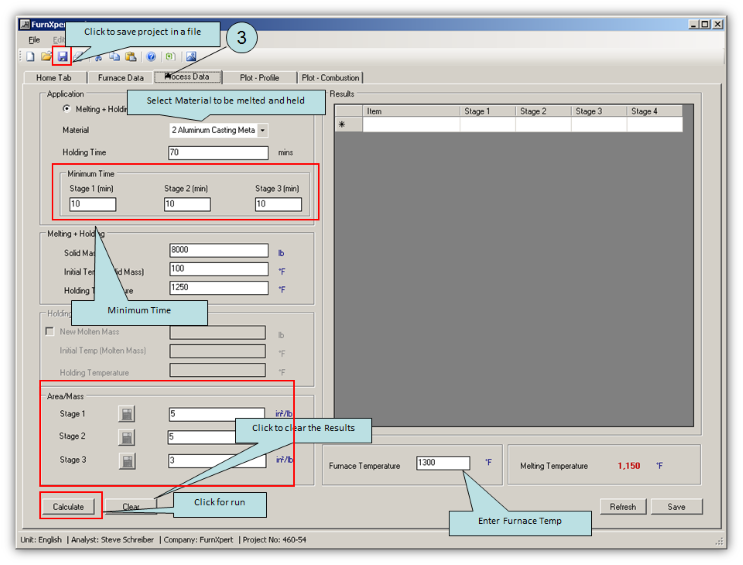

Material can be selected from a list of materials.

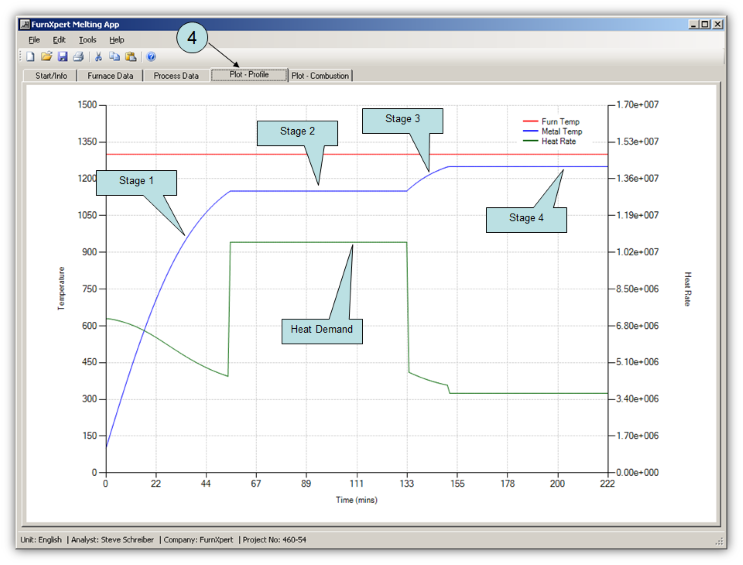

Process: The analysis is done at 4 stages

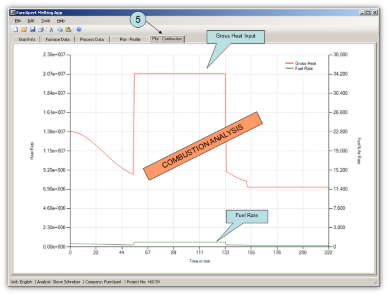

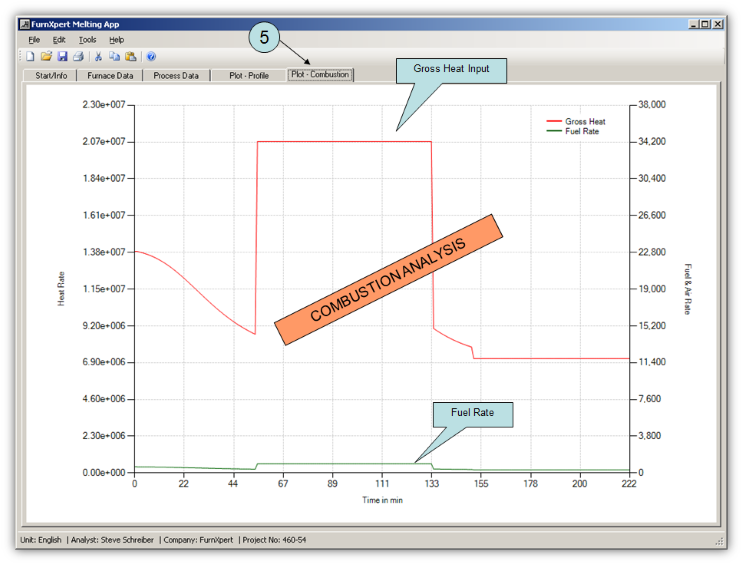

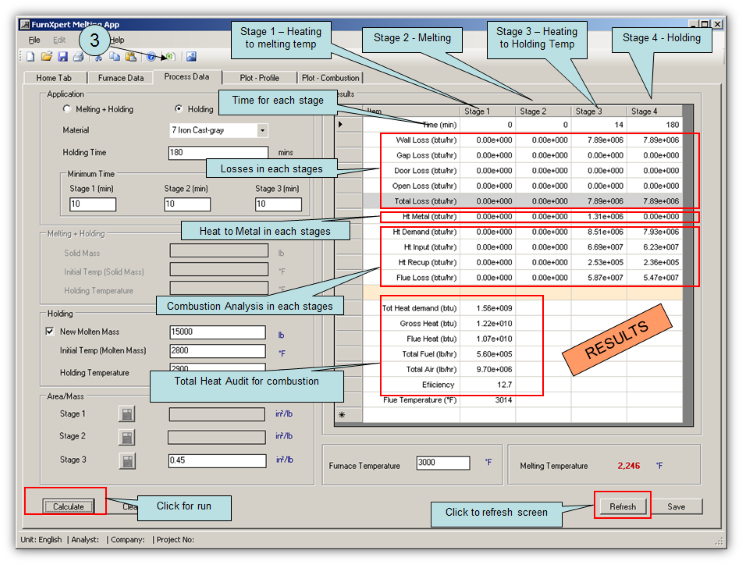

Results include Heating Time, Melting Time Heating Rates during Heating, Melting and Holding Heat Loss through Refractory Walls, Gaps & Openings Heat to raise scraps from ambient to Melting Point Heat to melt at melting point Fuel Rate, Air Rate, Flue Loss and Furnace Efficiency.

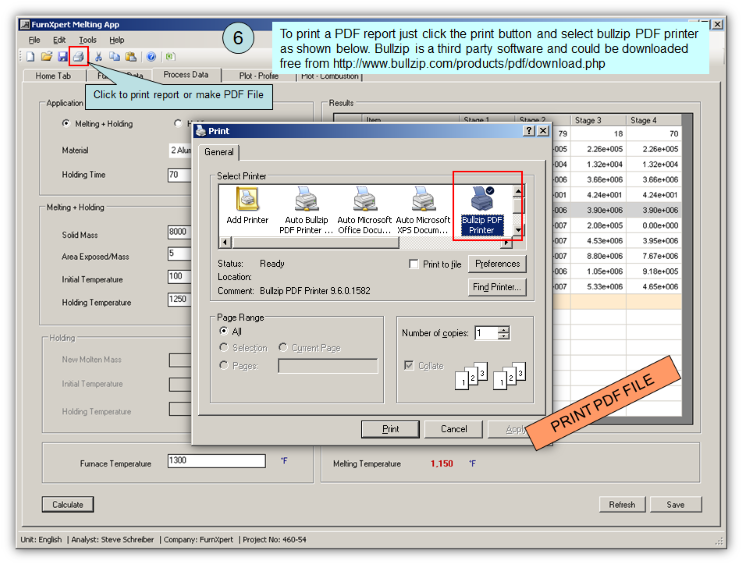

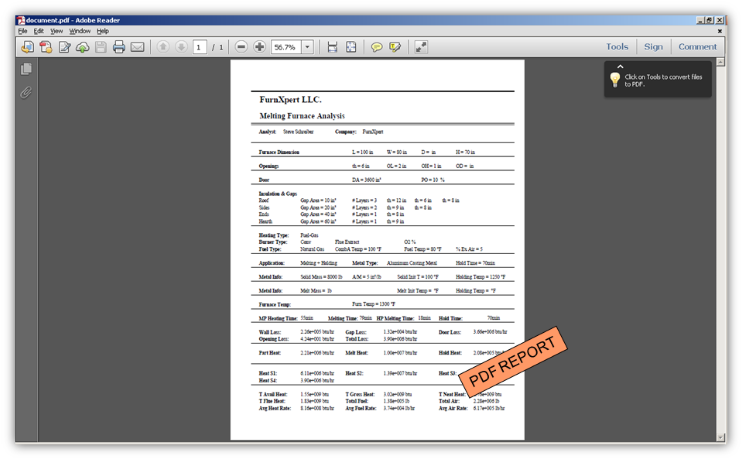

Results from each calculation can be displayed in a report format and can be directly printed or converted to PDF format.

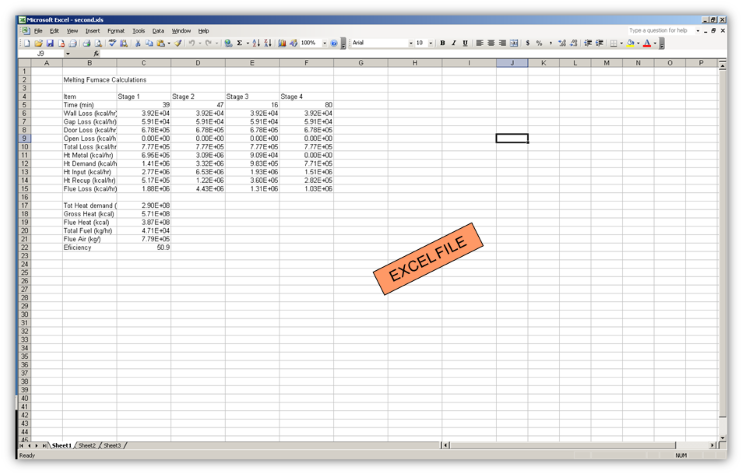

Excel Spread Sheet

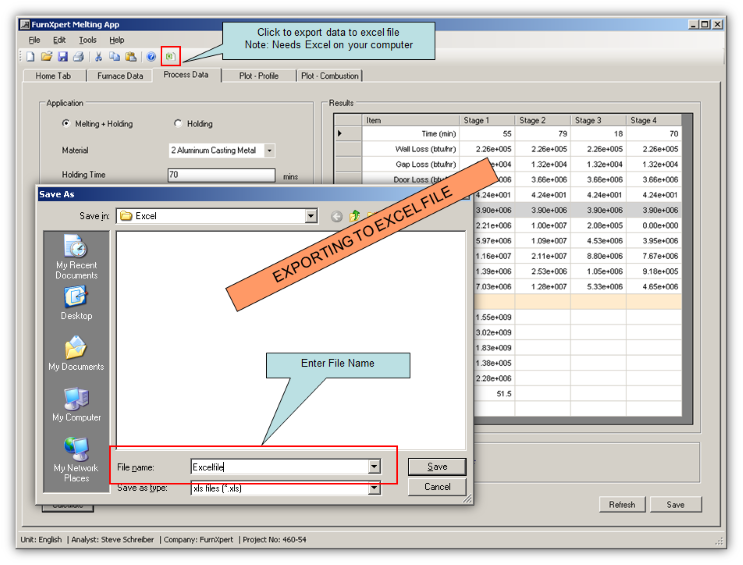

The results can also be exported to an excel spread sheet.

Operating System

The new software is developed with dot net technology and runs seamless on XP, VISTA, Windows 7 , Windows 8, 8.1. 10

Price of the software: *SINGLE USER Annual / Perpetual license

FurnXpert <elting Software USD 799 USD 999

Technical Support:The technical support package entitles the user to help-desk support via telephone or e-mail for a period of 1 year from the date of purchase. During this period the user will also be provided with free software upgrades, as they become available. The technical support package can be renewed at 20% price of the software after the end of evry year.

Multi User Discounts: Multi User License Discounts are available. Discounts: 5 10 license 10% discount, more than 10 licenses 15% discount
